TECHNICAL PARAMETERS
| Model | P1.8 | P2.5 | P3.1 |
| Pixel Pitch(mm) | 1.875 | 2.5 | 3.125 |
| Module Size(mm)(WxH) | 300x168.75 | 300x168.75 | 300x168.75 |
| Module Resolution(dots) | 160x90 | 120x68 | 96x54 |
| Screen Display Size(mm) | 600x2025 | 600x2025 | 600x2025 |
| Screen Resolution(dots) | 320x1080 | 240x810 | 192x648 |
| Total Size(mm)(With frame) | 630x2055x42.6 | 630x2055x42.6 | 630x2055x42.6 |
| Weight(kg/screen) | 52 | 52 | 52 |
| Grey Scale(bits) | 14 | 14 | 14 |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 |
| Contrast Rate | 6000:1 | 6000:1 | 6000:1 |
| Brightness(nits) | 0-800（10-level adjustment） | 0-800（10-level adjustment） | 0-800（10-level adjustment） |
| Viewing Angle(H°/V°) | 160°/160° | 160°/160° | 160°/160° |
| Operating System | Android | Android | Android |
| Video Interface | HDMI*2(1 Input & 1 Output),USB2.0*2 | ||
| Audio Interface | External Audio Interface | ||
| Video Format | MP4,AVI,WMV,etc. | ||
| AC Input Power Max./Avg.(W/screen) | Max.520W/Avg.155W | Max.600W/Avg.200W | Max.600W/Avg.200W |
| Control Interface | RJ45,WIFI,AP Local Network,4G/5G Network(Optional) | ||

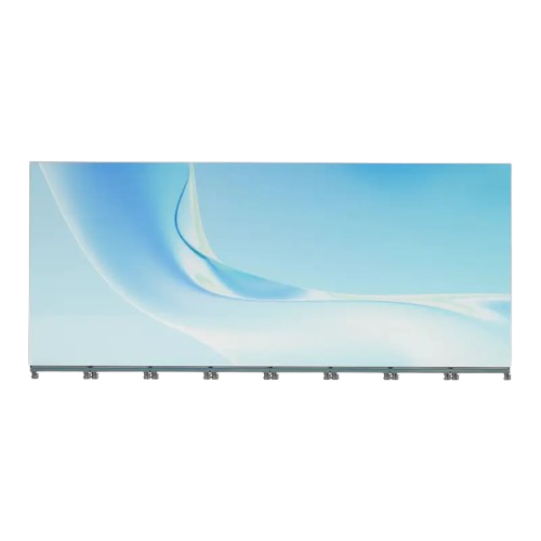

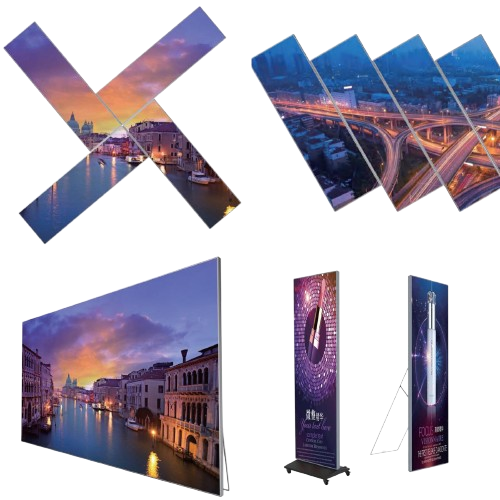

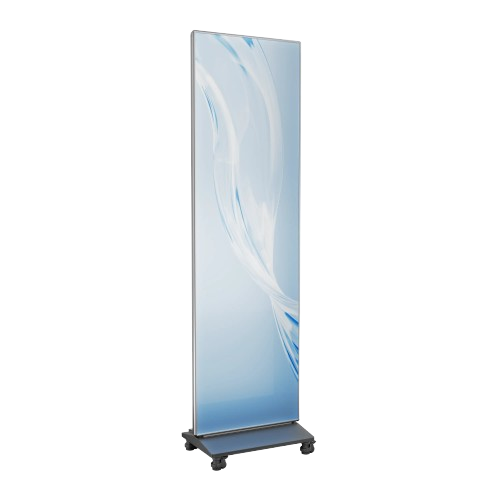

| Installation/Maintenance | Standing(Standard)/Stacking(Optional)/Hanging(Optional)/Wall Mounting | ||
